Yoke "BSI" Grade 80 Insulated Blank Swivel 7/8mm
Stock Code:
YBSI07
Price:
From:$1,186.80 Inc GST
In Stock
Description
Design factor 4:1 proof tested and certified. Tested to DIN EN 1677.
Individually tested to resist 1000 Volts. Insulated with Test Certificate. Designed for protection during welding operations on suspended loads.

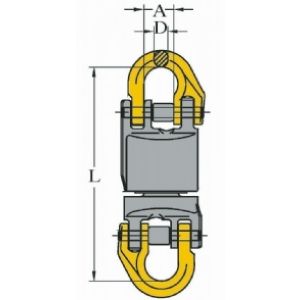

Item No. | Working Load Limit | For Grade 80 Chain(mm) | Dimensions (mm) | N.W. | |
tonnes* | mm | D | L | Kg | |
8-088N-07 | 2.0 | 7, 8 | 50 | 75 | 0.6 |
8-088N-10 | 3.15 | 10 | 62 | 94 | 1.2 |
8-088N-13 | 5.3 | 13 | 77 | 123 | 2.4 |
8-088N-16 | 8.0 | 16 | 94 | 143 | 4.2 |
8-088N-20 | 12.5 | 18, 20 | 109 | 164 | 6.7 |
