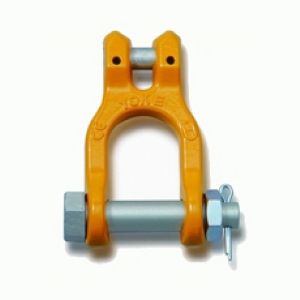

Yoke "YR" Grade 80 Clevis Shackle
Stock Code:
YR07
Stock Code:
YR10
Stock Code:
YR13
From:$123.05 Inc GST
From:$175.95 Inc GST
From:$311.65 Inc GST
In Stock
In Stock
In Stock
Out of Stock
Description
G80 clevis shackles have been designed to be used as a terminal end connecting to the chain at the clevis end.
Marked with chain size, batch number and grade.
Spare latch kits are available.

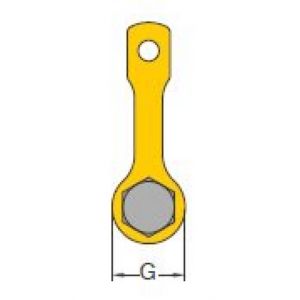

| Item No. | Working Load Limit | For Grade 80 Chain(mm) | Dimensions (mm) | N.W. | ||||||
| tonnes* | mm | A | C | G | K | L | M | W | Kg | |
| 8-066-07 | 2.0 | 7, 8 | 9 | 79 | 34 | 59 | 35 | 16 | 33 | 0.4 |
| 8-066-10 | 3.15 | 10 | 11 | 93 | 40 | 78 | 48 | 20 | 34 | 0.8 |
| 8-066-13 | 5.3 | 13 | 14 | 118 | 44 | 98 | 64 | 22 | 49 | 1.4 |
| 8-066-16 | 8.0 | 16 | 18 | 141 | 54 | 112 | 69 | 28 | 60 | 2.4 |
