Yoke "YP" Grade 80 Eye Sling Hook
Stock Code:
YP07
Stock Code:
YP10
Stock Code:
YP18/20
From:$47.15 Inc GST
From:$69.00 Inc GST
From:$477.25 Inc GST
Out of Stock
Out of Stock
Out of Stock
Out of Stock
Description

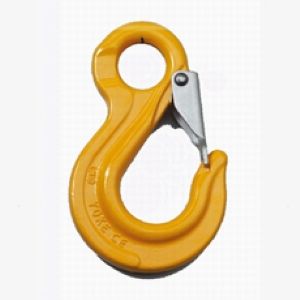

Yoke Grade 80 Eye sling hooks are designed to suit chain slings for industrial lifting applications. Manufactured from alloy steel, hardened and tempered.
- Sling hook with eye allowing you to connect to chain, wire rope or webbing.
- Includes safety latch.
- Replacement safety latches available.
- Design factor 4:1 proof tested and certified.
- Manufactured in Taiwan.

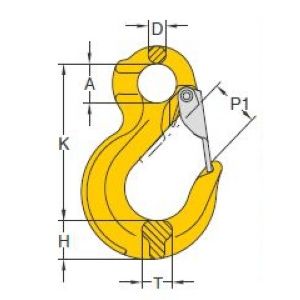

| Item No. | Working Load Limit | For Grade 80 Chain(mm) | Dimensions (mm) | N.W. | |||||
| tonnes* | mm | A | D | H | K | P1 | T | Kg | |
| 8-044/S-06 | 1.12 | 6 | 20 | 9 | 20 | 80 | 23 | 16 | 0.3 |
| 8-044/S-07 | 2.0 | 7, 8 | 25 | 11 | 23 | 98 | 28 | 20 | 0.5 |
| 8-044/S-10 | 3.15 | 10 | 32 | 14 | 31 | 121 | 36 | 23 | 1.0 |
| 8-044/S-13 | 5.3 | 13 | 40 | 18 | 38 | 152 | 40 | 28 | 1.7 |
| 8-044/S-16 | 8.0 | 16 | 50 | 22 | 47 | 184 | 44 | 32 | 3.2 |
| 8-044/S-20 | 12.5 | 18, 20 | 60 | 26 | 48 | 218 | 45 | 43 | 5.5 |
| 8-044/S-22 | 15.0 | 22 | 50 | 31 | 62 | 244 | 73 | 50 | 9.0 |
| 8-044/S-26 | 21.2 | 26 | 64 | 35 | 80 | 279 | 77 | 60 | 13.5 |
| 8-044/S-32 | 31.5 | 32 | 88 | 40 | 86 | 352 | 114 | 65 | 20.0 |
