Connector - G80 Yoke
Stock Code:
YA07
Stock Code:
YA10
Stock Code:
YA13
Stock Code:
YA16
Stock Code:
YA18/20
Stock Code:
YA20
Stock Code:
YA26
From:$34.50 Inc GST
From:$36.80 Inc GST
From:$69.00 Inc GST
From:$105.80 Inc GST
From:$188.60 Inc GST
From:$332.35 Inc GST
From:$476.10 Inc GST
In Stock
In Stock
In Stock
In Stock
In Stock
In Stock
Out of Stock
In Stock
Description

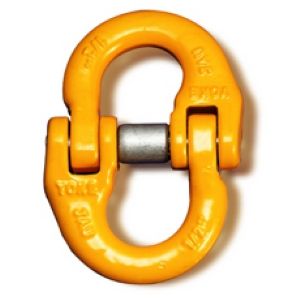

G80 Chain connectors are commonly used to connect master rings, chains, hooks and other lifting components for chain slings and variable type slings.
- Marked with chain sizes, batch number, grade and manufacture quality mark
- Batch tested
- Spare pin and studs are available
- Comply with EN818.4, EN1677-1, AS3776
- Sizes available from 6mm to 32mm

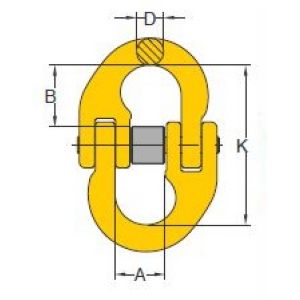

Item No. Working
Load LimitFor Grade 80 Chain(mm) Dimensions (mm) N.W. tonnes* mm A B D K Kg 8-015-06 1.12 6 15 17 7 44 0.08 8-015-07 2.0 7, 8 18 22 9 57 0.2 8-015-10 3.15 10 25 26 11 68 0.3 8-015-13 5.3 13 30 35 16 91 0.7 8-015-16 8.0 16 36 38 19 100 1.1 8-015-20 12.5 18, 20 42 46 22 122 1.9 8-015-22 15.0 22 49 59 24 152 3.0 8-015-26 21.2 26 55 62 30 162 5.0 8-015-32 31.5 32 69 79 36 202 9.0
